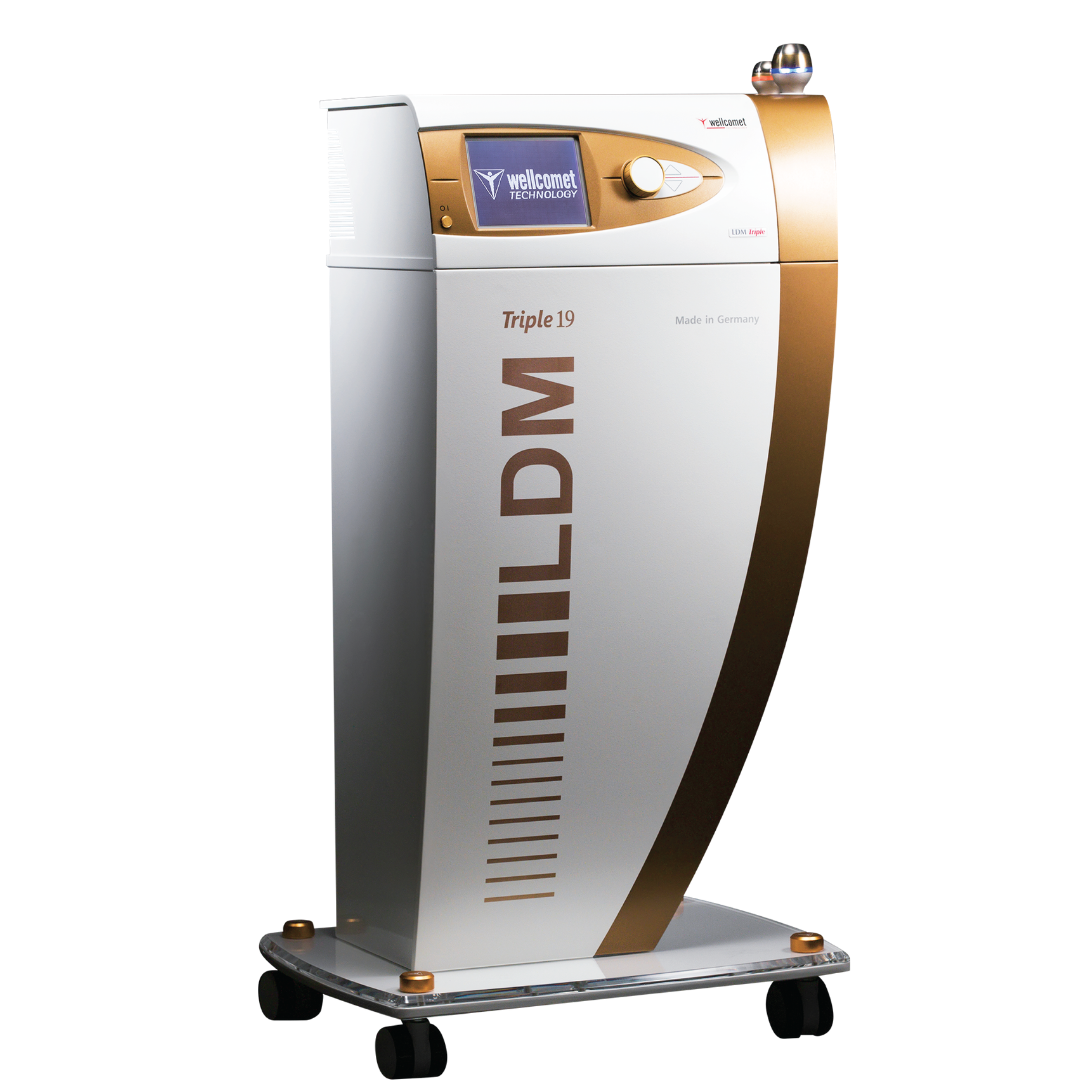

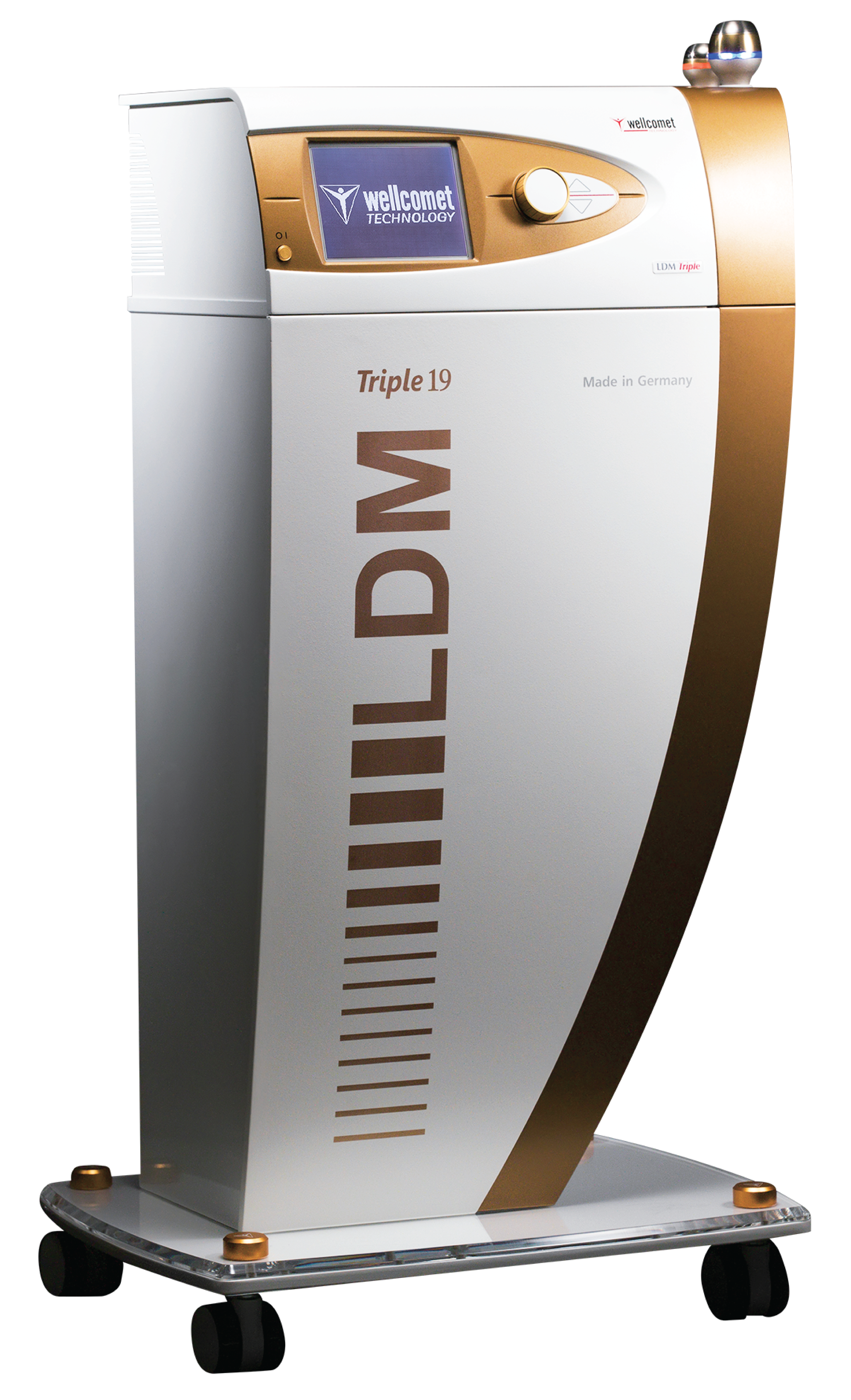

LDM® Triple 19

LDM® Triple 19




The LDM Triple product is the advanced version of Wellcomet® professional range of devices. It was designed primarily for use in the aesthetic-dermatological field and is a modern treatment method for indications such as anti-aging, wrinkles, acne and much more.

The unique treatment success of LDM Triple not only results from the use of the two well-known Wellcomet® technologies – LDM® and the 10 MHz frequency, but also from the use of the completely new 19 MHz frequency and the triple LDM® technology. This special triple technology combines three ultrasonic frequencies simultaneously to a highly effective power wave.

The LDM Triple device differs significantly from conventional ultrasound devices by its world-wide unique triple-ultrasound wave (triple LDM®) and is used in aesthetic medicine and dermatology. It can be used all year round can be easily combined with a variety of existing treatment methods on the market.

The special ultrasound waves of the LDM Triple can also be used as a supportive treatment at wrinkle injections and as a pre- and postoperative measure in aesthetic plastic surgery. The ultrasound technologies used in this device, such as the 10 or 19 MHz, LDM® and the triple LDM® technology, can intensify and visibly improve the treatment results of your customers.

Which effect does LDM® have on skin?

The ultrasonic waves used in the LDM Triple as well as their LDM® and triple LDM® combinations can modulate individual tissue structures and thus specifically intervene into dynamic processes of the connective tissue. For example, they do not only regulate the so-called matrix metalloproteinases (MMPs), that are primarily responsible for tissue degradation, but also influence the production of so-called heat shock proteins (HSPs), that are necessary for proper protein control in tissue. Hyaluronic acid (HA) levels in the skin can also be specifically influenced with certain ultrasound frequencies that in turn can lead to more turgor and some rapidly visible structural changes in tissue.

Control MMPs (Matrix Metalloproteinases)

Excessive inflammation suppression
Scar prevention
Maximize rejuvenation

Activation of HSPs (Heat Shock Proteins)

Increase of immunity and
reproduction capabilities

Content of GAGs (Glycosaminoglycans)

Moisture increase
Metabolism acceleration


Aesthetic Medicine

  • Wrinkle/folds
  • Skin tightening
  • Skin rejuvenation
  • Anti-Aging
  • Cellulite reduction
  • Pre- and post- treatments by aesthetic surgery
  • Stretch marks
  • Phonophoresis


  • Acne
  • Atopic/ perioral dermatitis
  • Ulcus cruris
  • Hypertrophic scars / Keloids
  • Acne scars
  • Eczema

Technical Specifications

Ultrasound Frequencies Single frequencies: 1 MHz; 3 MHz; 10 MHz; 19 MHz

LDM®: 1/3 MHz; 1/10 MHz; 3/10 MHz; 3/19 MHz; 10/19 MHz

Triple- LDM®: 1/3/10 MHz; 3/10/19 MHz

Treatment Heads Sonotrode #1: 3/10/19 MHz 5cm2; 340g

Sonotrode #2: 1/3/10 MHz 5cm2; 290g

Sonotrode #3: 1/3 MHz 10cm2 (optional)

Treatment Modes

cont.; 1:2; 1:5; 1:10, dual LDM®; triple-LDM®

Intensity up to 1,5 W/cm²
Outputs 2 outputs of the sonotrodes
Instrument safety Protection class I
Mains voltage, power consumption 230 V ± 10%, 50Hz, 55VA
Mains fuses 250 V, 2 x TL 0,63 A
Dimensions (H x W x D) 174 x 485 x 293 mm
Weight 8,5 kg
