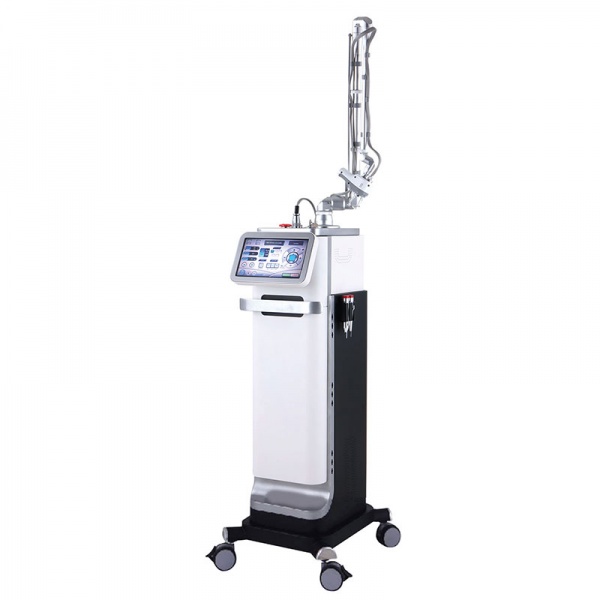

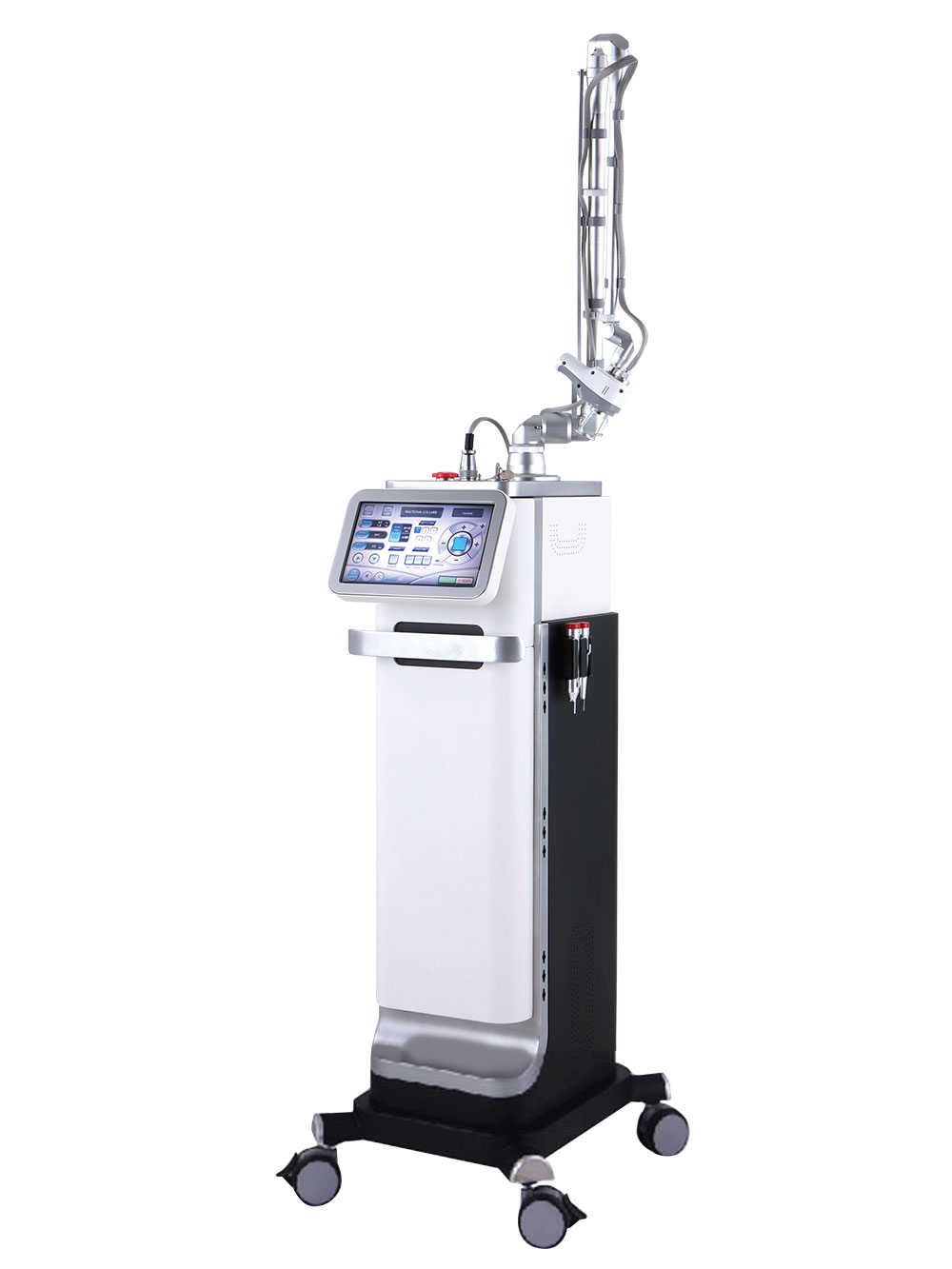

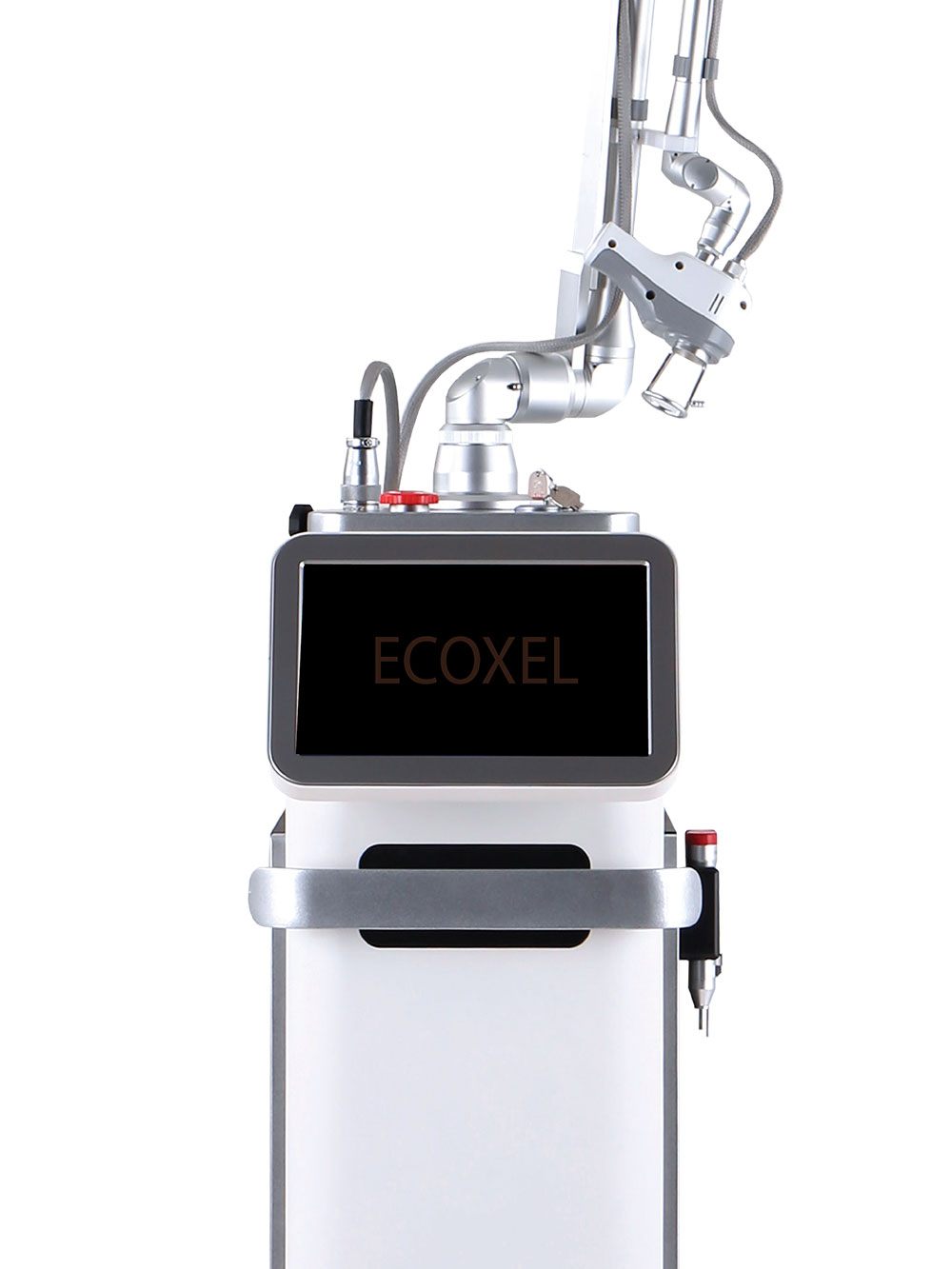

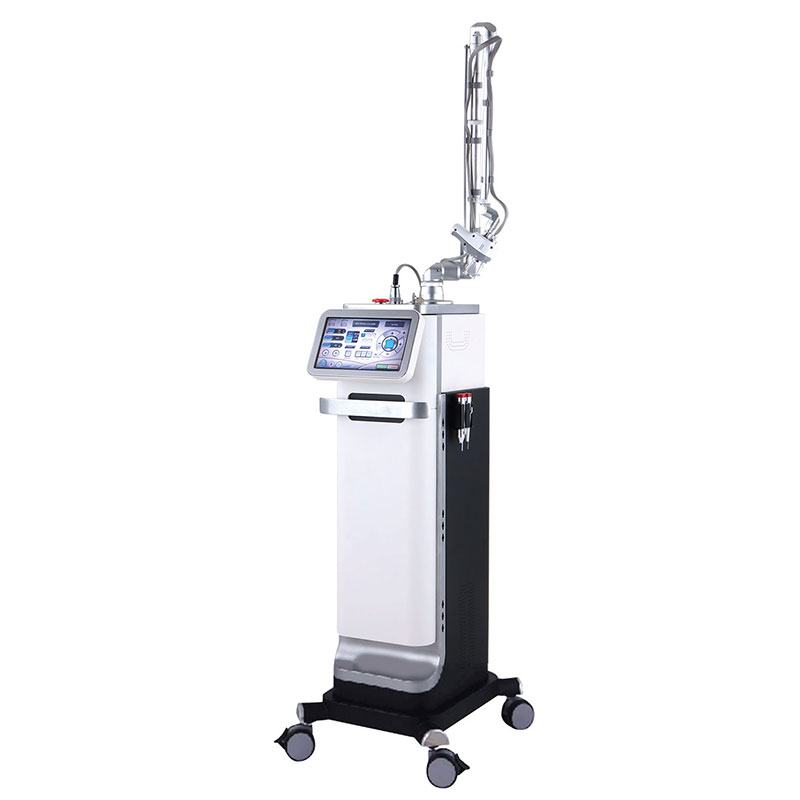

Fractional CO2 Laser System

Fractional Laser uses very fine laser beam to minimize skin damage by heat and to shorten the recovery and rejuvenation period. Therefore, the patients can resume normal daily activities soon after treatment.

Fractional Laser uses CO2 tube to improve the effects of treatment, This CO2 tube has a long life span,stability and advantage of precise treatment.

Treatment time can be shortened by adjusting spot size and the beam density, which is beneficial for both of the operator and the patient.


  • Skin Tightening
  • Acne Scar
  • Warts / Mole
  • Skin Resurfacing
  • Large Pore
  • Freckles
  • Wrinkle
  • Stretch Mark
  • LVR (Laser Vaginal Rejuvenation)

Technical Specifications

Laser Type CO2 Laser
Wavelength 10.600nm
Laser Power 1-40W
Electrical Requirements 220v, 6A. single phase,50/60hz
Cooling System Water cooling
Dimensions 350x360x1200
Weight 52Kg
Display 10.2 inches color lcd
Aiming Beam Diode Laser 655nm (5mw) :1-10 Step
Surgical Mode
Handpiece Type 50mm,100mm(Basic) E.N.T & Dental
Laser Operation Mode 1. CW         2. Normal Pulse         3. Super Pulse
4. Super Pulse Continuous
5. Ultra Pulse
6. Smart Protocol(General Surgery/Dental Surgery)
Pulse Duration – Ultra Pulse : 90us-900us
– Super Pulse :1000us-3500us
– Normal Pulse : 4ms-20ms
Repeat Time OFF, 2ms/500ms adjustable, 5ms, 10ms, 30ms, 50ms, 70ms, 100ms, 250ms, 500ms
Fractional Mode
Beam Mode Ultra Pulse
Density Level 1-23 Step(x,y line) ; 9dots-4489 dots
Operation Mode Fractional Mode
Low Pain Fractional Mode
Beam Patterns Array,Grid, Random
Beam Size 2×2mm – 20×20mm
Beam Shape
Depth Level 1-5 Step
Handpiece – Fractional Handpiece(Galvanic Motor)
– Vaginal Rejuvenation Handpiece(Optional)
Repeat Time OFF, 0.5 , 1.5, 2, 2.5ms
