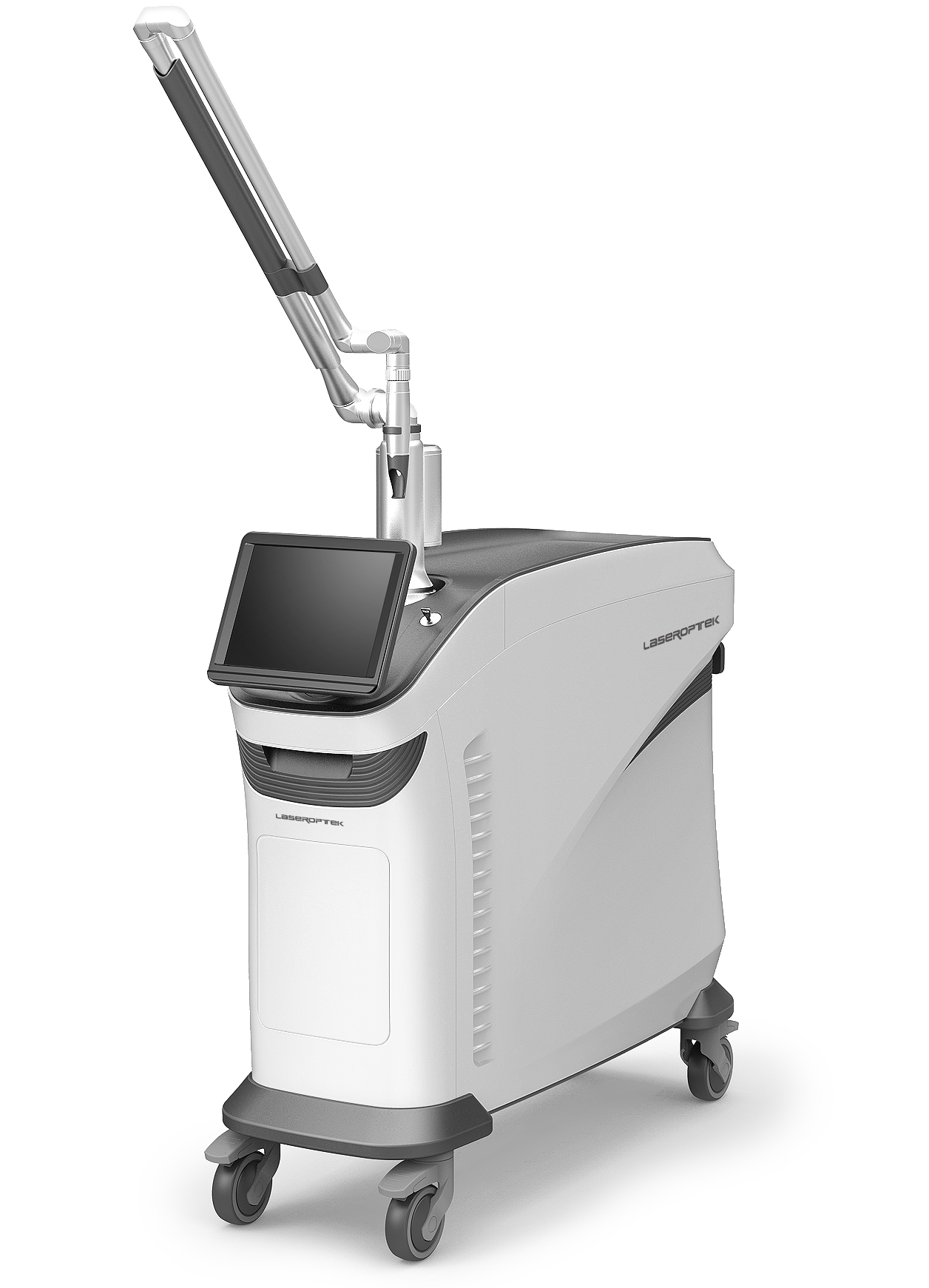

Ultra-Short Picosecond Laser

PicoLO is a next generation, truly picosecond Nd:YAG laser (1064nm & 532nm) designed to treat pigmentation lesions and perform tattoo removal, scar correction and skin rejuvenation.

This ultra short pulse targets pigmentations more effectively, minimizing discomfort, pain, side effects and downtime. PicoLO provides the largest spot size to allow faster treatments. Its award-winning good design and compact size will provide you more convenient procedure environment.

• High Stability
• Genuine Picosecond
• Versatility
• Faster
• Compact

Photomechanical Effect By Doe Fractional Laser Bam

LASEROPTEK’s patented DOE Fractional Technology has once again been implemented to provide the photomechanical effect, which is the mechanism by which the chromophores of lesions are fragmented and broken up following the application of short laser pulses that can quickly heat up the targeted chromophores, which is called thermal stress, as well as acoustic stress being achieved when laser pulse duration is less than the acoustic diffusion time. In addition, it makes collapse of the cavitation bubble to generate strong local mechanical forces within the dermis, so called as Laser Induced Optical Breakdown (LIOB).


PicoLO’s DOE Fractional Laser Beam can safely generate optical breakdown in tissue, leading to an enhanced inflammatory healing process resulting in production of collagen and elastin.

References: Friedman, D. (2015). A New Picosecond Paradigm for Prevention of Tattoo and Pigmented Lesion Removal Induced Adverse Sequelae, Schomacker, K., & Bhawalkar, J. D. (2015). Mechanisms of Action of Fractionated 532nm and 1064nm Picosecond Laser for Skin Rejuvenation a Patent No. 1010426870000(KR), fractional laser system using of diffraction pattern, and thereof ray method


  • Tattoo removal
  • Lentigo
  • Nevus ota
  • Skin Irregulation
  • Freckle
  • Cafe au lait
  • Rejuvenation
  • Melasma

Technical Specifications

Wavelength 1064nm/532nm
Pulse Duration 450ps/380ps
Pulse Energy (max) 500mJ/350mJ
Repetition Rates M1, M3, M5, 1-10Hz
Peak Power 1.1GW
Spot Size Zoom: 2~7mm
Fractional: 10 x 10/7 x 7mm²
Collimated: 20 x 20mm²
Display  10.4″ TFT LCD Touch panel
Electrical Control  ARM processor
Cooling System Closed cycle water to air heater exchanger
Electrical Power 220-230VAC, 50/60Hz
Dimensions 372cm x 1034cm x 903cm (W x D x H)
Weight 110kg

Subject to technical changes.
